Lost Vape
LOST VAPE EFUSION DNA 200 BOX MOD
RM700.00 MYR

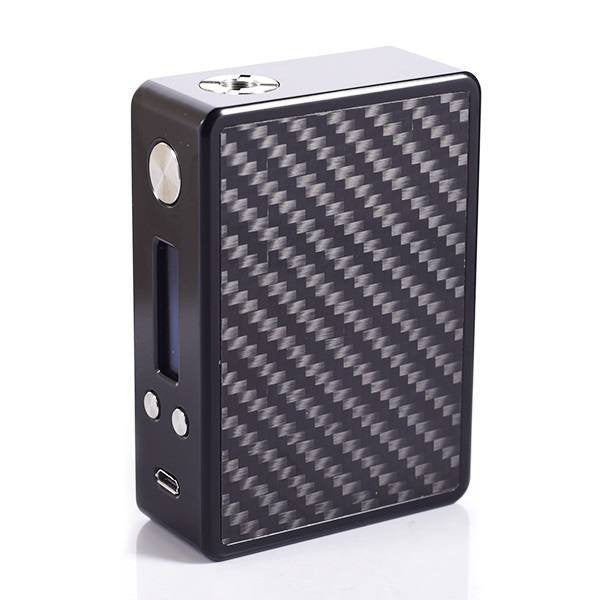

Lost Vape EFusion DNA 200 Box Mod
The Lost Vape EFusion DNA 200 builds upon the foundation of the Esquare and EPetite chassis, integrating the most advanced chip today in the Evolv DNA 200, a FullyMax 1300mAh 3 Cell LiPo (equivalent to a 3900mAh 3.7V) with a XT30 connector, and the precision and beautiful craftsmanship that Lost Vape has come to be known for. Manufactured out of 6061 T6 Aluminum, then anodized, the chassis of the EFusion maintains the replaceable and removable carbon fiber door paneling as well as the beloved form factor from previous models. Precision milled Stainless Steel buttons retain the ultra responsive and smooth feel, while maintaining the classic layout that offers easy to reach button placement alongside the 1A Micro USB Port. The EFusion features a XT30 LiPo connection, allowing users to service and switch out the pack (Please refer to EScribe documentation. Please note, removal and replacement of LiPo pack voids warranty and is ONLY intended for advanced users), while the integrated FullyMax 1300mAh 14.4 Watt Hour 11.1V 3 Cell LiPo provides top notch performance, stability, and has the equivalent battery life to a 3900mAh 3.7V cell. Loaded with a DNA 200 chipset by Evolv, the EFusion has the incredible accuracy and capability that comes with the DNA 200, featuring 97% output efficiency, fully customizable output performance via EScribe, a 200W maximum output, full temperature control, and screen customization options. The combination of cutting edge output and a beautifully designed and manufactured chassis meet. The EFusion DNA 200 Box Mod by Lost Vape.
Product Features:
Product Specifications:
DNA 200 Features:
Current Owner's of the EFusion Should Follow the Following Steps to Ensure Maximum Performance!
1.) Download and Install EScribe via the link provided below (PC Only Currently).
2.) Start EScribe and Connect the EFusion to your PC
3.) When prompted, upgrade your Efusion to the latest firmware version.
4.) Navigate to the 'Mod' tab in Escribe. Verify that under 'Type', 'Lithium Polymer' is selected.
5.) Press 'Watt-Hour Calculator'. Confirm that you know the battery type installed.
6.) Change Value '720' to '1300' and Confirm.
7.) Confirm that 14.43 Watt Hours (Wh) is calculated, then click 'Yes'
8.)Your Lost Vape EFusion DNA 200 is now up to date!
Product Recommendations:
***Always turn off the device and take the battery out when not in use!
Advanced User Item. Use AT YOUR OWN RISK!
NOTE: There is an inherent risk with the use of any and all rechargeable batteries in any circumstance. HOV are not responsible for damage if there is any modification of the batteries/chargers in any form or shape (including pack making). HOV are not responsible for any damage caused by the misuse and/or mishandling of Li-ion (Lithium-ion), LiPo (Lithium-ion Polymer) and any rechargeable batteries and chargers.
Use special caution when working with Li-ion (Lithium-ion), LiPo (Lithium-ion Polymer) and any rechargeable cells, as they are very sensitive to charging characteristics and may explode or burn if mishandled. Make sure the user has enough knowledge of Li-Ion (Lithium-ion), LiPo (Lithium-ion Polymer) and any rechargeable cells in charging, discharging, assembly and storage before use. Always charge in/on a fire-proof surface. Never leave charging batteries unattended. Do not use any rechargeable battery as well as any battery charger if any visible damage is present, as well as if the cell or charger has been stressed through mishandling, accidental or otherwise, even if damage may not be visible. Always store and transport rechargeable cells in a safe, non-conductive container in a controlled environment. Dispose of all battery cells and chargers in accordance to local laws and mandates.
HOV will not be held responsible or liable for any injury, damage, or defect, permanent or temporary that may be caused by the improper use of a Li-ion (Lithium-ion), LiPo (Lithium-ion Polymer) and any rechargeable battery/batteries. Please have a basic understanding of the batteries you are using and how to care for them properly
The Lost Vape EFusion DNA 200 builds upon the foundation of the Esquare and EPetite chassis, integrating the most advanced chip today in the Evolv DNA 200, a FullyMax 1300mAh 3 Cell LiPo (equivalent to a 3900mAh 3.7V) with a XT30 connector, and the precision and beautiful craftsmanship that Lost Vape has come to be known for. Manufactured out of 6061 T6 Aluminum, then anodized, the chassis of the EFusion maintains the replaceable and removable carbon fiber door paneling as well as the beloved form factor from previous models. Precision milled Stainless Steel buttons retain the ultra responsive and smooth feel, while maintaining the classic layout that offers easy to reach button placement alongside the 1A Micro USB Port. The EFusion features a XT30 LiPo connection, allowing users to service and switch out the pack (Please refer to EScribe documentation. Please note, removal and replacement of LiPo pack voids warranty and is ONLY intended for advanced users), while the integrated FullyMax 1300mAh 14.4 Watt Hour 11.1V 3 Cell LiPo provides top notch performance, stability, and has the equivalent battery life to a 3900mAh 3.7V cell. Loaded with a DNA 200 chipset by Evolv, the EFusion has the incredible accuracy and capability that comes with the DNA 200, featuring 97% output efficiency, fully customizable output performance via EScribe, a 200W maximum output, full temperature control, and screen customization options. The combination of cutting edge output and a beautifully designed and manufactured chassis meet. The EFusion DNA 200 Box Mod by Lost Vape.
Product Features:
- Removable and Replaceable Carbon Fiber Doors
- 6061 T6 Aluminum Chassis
- Anodized
- Precision Milled Stainless Steel Buttons
- Ultra Responsive and High Surface
- Stainless Steel 510 Connection
- Nickel Plated Brass Contact
- 1300mAh FullyMax 3 Cell LiPo
- 14.4W Hour
- 11.1V
- Equivalent to a 3900mAh 3.7V Cell
- XT30 Connection
- Allows for the removal and servicing of battery
- Please Note: Removal and servicing of existing battery will void warranty. This feature is intended for advanced users ONLY and requires additional diagnostic and set-up through EScribe.
Product Specifications:
- 85mm by 60mm by 25mm
DNA 200 Features:
-
1 to 200W Output Range
- 100W Kanthal Range (Able to be changed through Escribe)
- 200W Max Temperature Range
- 1 to 9V Output
- 0.1 to 2.0 ohm Kanthal Resistance Range
- 0.08 to 1.0 ohm Temperature Sensing Range
- Temperature Range
- 200 to 600 Degrees Fahrenheit
- Cell by Cell Monitoring
- Cell Balancer
- 1A USB Charger
- Atomizer, Weak Battery, Temperature, Resistance, Auto Power Down, and Heat Protection
- Escribe
- Configure and Modify the operation of the DNA 200
Escribe Download Link Escribe Interactive Training Course
- Autosensing Temperature Resistance
- Lock Mode
- Stealth Mode
- Power Lock Mode
- Power Preset Mode
- Resistance Lock
- Max Temperature Adjustment
- Efficiency
- 97%
- Output Current Continuous Max
- 50A
- Output Current Instantaneous Peak
- 55A
- Input Voltage
- 9 to 12.6V
- Input Current
- 0.5 to 23A
- Screen On Current
- 18mA
- Quiescent Current
- 4.5mA
- Power Down Current
- 5uA
Current Owner's of the EFusion Should Follow the Following Steps to Ensure Maximum Performance!
1.) Download and Install EScribe via the link provided below (PC Only Currently).
2.) Start EScribe and Connect the EFusion to your PC
3.) When prompted, upgrade your Efusion to the latest firmware version.
4.) Navigate to the 'Mod' tab in Escribe. Verify that under 'Type', 'Lithium Polymer' is selected.
5.) Press 'Watt-Hour Calculator'. Confirm that you know the battery type installed.
6.) Change Value '720' to '1300' and Confirm.
7.) Confirm that 14.43 Watt Hours (Wh) is calculated, then click 'Yes'
8.)Your Lost Vape EFusion DNA 200 is now up to date!
Product Recommendations:
- In order to use temperature control output, coils must be built using non-resistant wire. Evolv recommends Ni200.
- Please refer to Escribe documentation for walkthroughs and information on how to utilize Escribe.
***Always turn off the device and take the battery out when not in use!
Advanced User Item. Use AT YOUR OWN RISK!
NOTE: There is an inherent risk with the use of any and all rechargeable batteries in any circumstance. HOV are not responsible for damage if there is any modification of the batteries/chargers in any form or shape (including pack making). HOV are not responsible for any damage caused by the misuse and/or mishandling of Li-ion (Lithium-ion), LiPo (Lithium-ion Polymer) and any rechargeable batteries and chargers.
Use special caution when working with Li-ion (Lithium-ion), LiPo (Lithium-ion Polymer) and any rechargeable cells, as they are very sensitive to charging characteristics and may explode or burn if mishandled. Make sure the user has enough knowledge of Li-Ion (Lithium-ion), LiPo (Lithium-ion Polymer) and any rechargeable cells in charging, discharging, assembly and storage before use. Always charge in/on a fire-proof surface. Never leave charging batteries unattended. Do not use any rechargeable battery as well as any battery charger if any visible damage is present, as well as if the cell or charger has been stressed through mishandling, accidental or otherwise, even if damage may not be visible. Always store and transport rechargeable cells in a safe, non-conductive container in a controlled environment. Dispose of all battery cells and chargers in accordance to local laws and mandates.
HOV will not be held responsible or liable for any injury, damage, or defect, permanent or temporary that may be caused by the improper use of a Li-ion (Lithium-ion), LiPo (Lithium-ion Polymer) and any rechargeable battery/batteries. Please have a basic understanding of the batteries you are using and how to care for them properly
